Multifunctional network analyzer (incl. residual current detection)
The compact MRG 96RM-E RCM FLEX is suitable for energy audits, recording residual current, and measuring power quality parameters – wherever it is needed. It is also perfect for analyzing electrical disturbances in the event of network problems.
Rogowski current transformer included in the scope of delivery
Flexible Rogowski coils offer a major advantage, particularly for applications with large cable cross-sections. But Rogowski current transformers are also better than iron-core current transformers when it comes to higher frequencies (harmonics current).

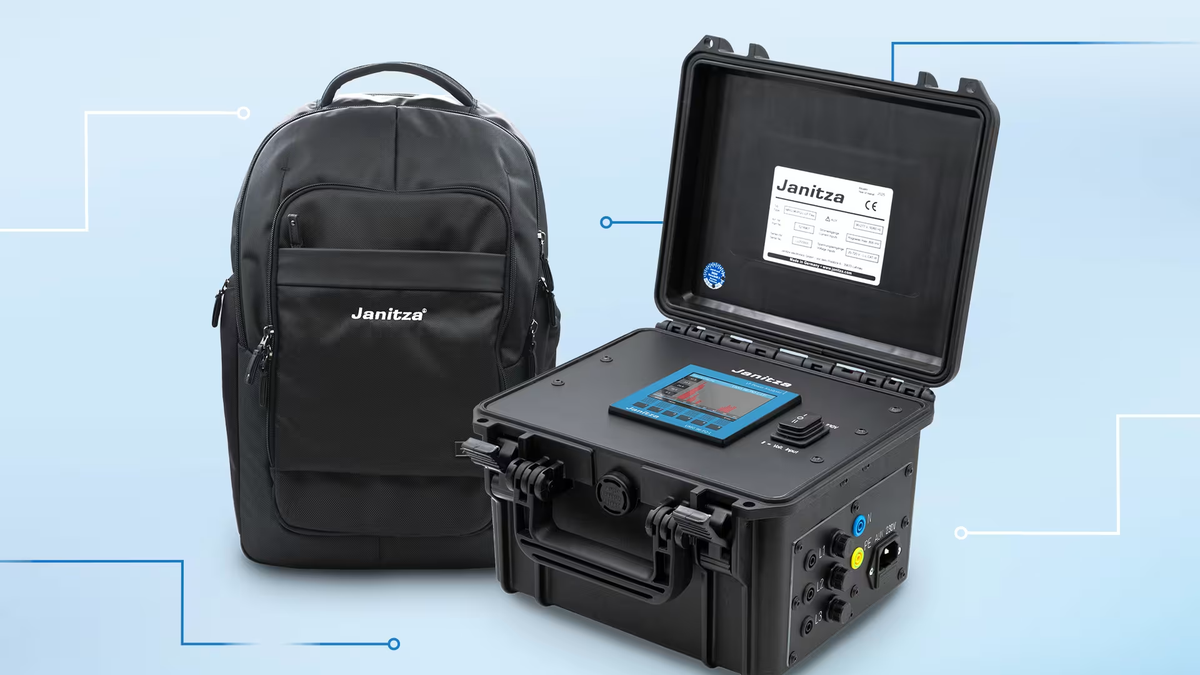

Complete package – mobile network analyzer incl. accessories:
- 1 MRG 96-PQ-L-LP Flex
- 1 laptop backpack
- 1 power cable
- 3 voltage measuring taps, black (claw gripper) with back-up fuse
- 1 voltage measuring tap, blue (claw gripper) with back-up fuse
- 1 voltage test lead set
- 4 MFC 150 Rogowski coils with connecting cable and plug (Ø 175 mm, L 5000 mm)
- 1 connection cable set with plug for residual current measurement, 3 m (residual current transformer not included in the scope of delivery)
